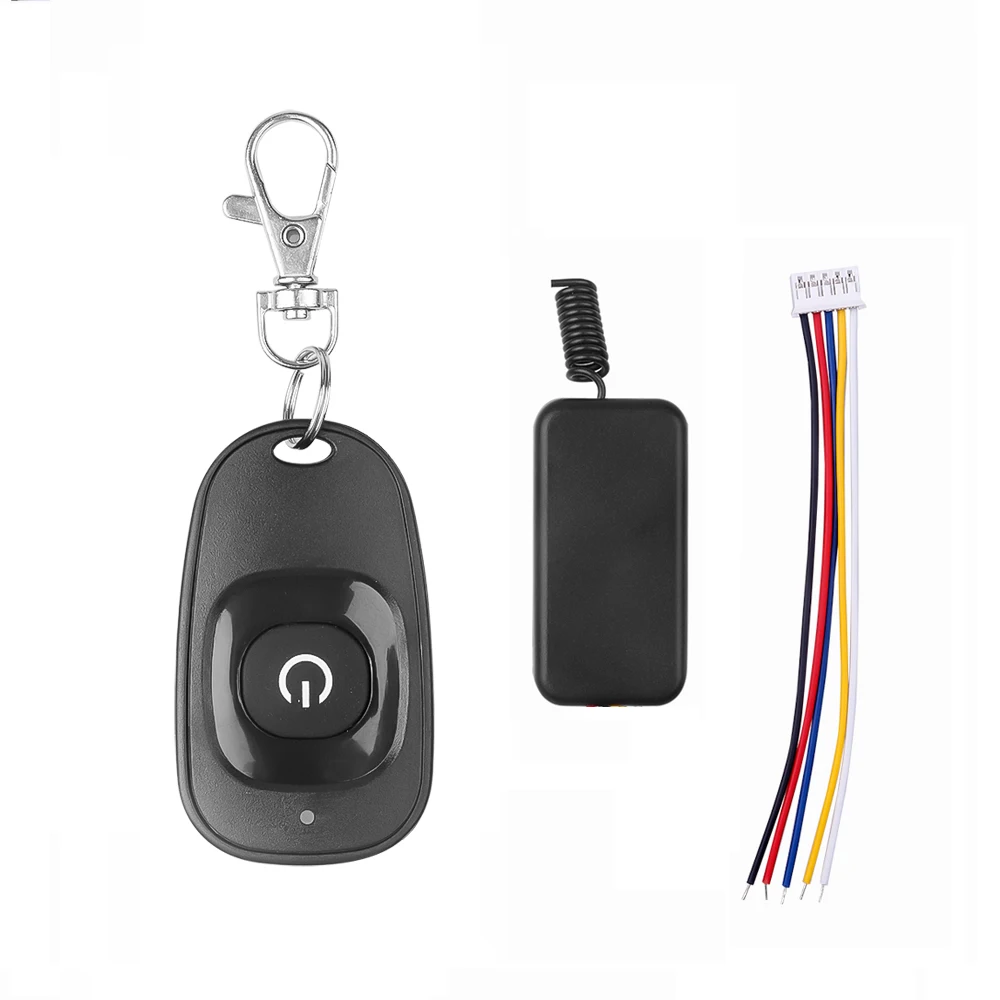

Product parameters:
Colour: Black
Material: ABS
remote control:
Working frequency: 433Mhz
Distance: <50 meters
Number of buttons: 1

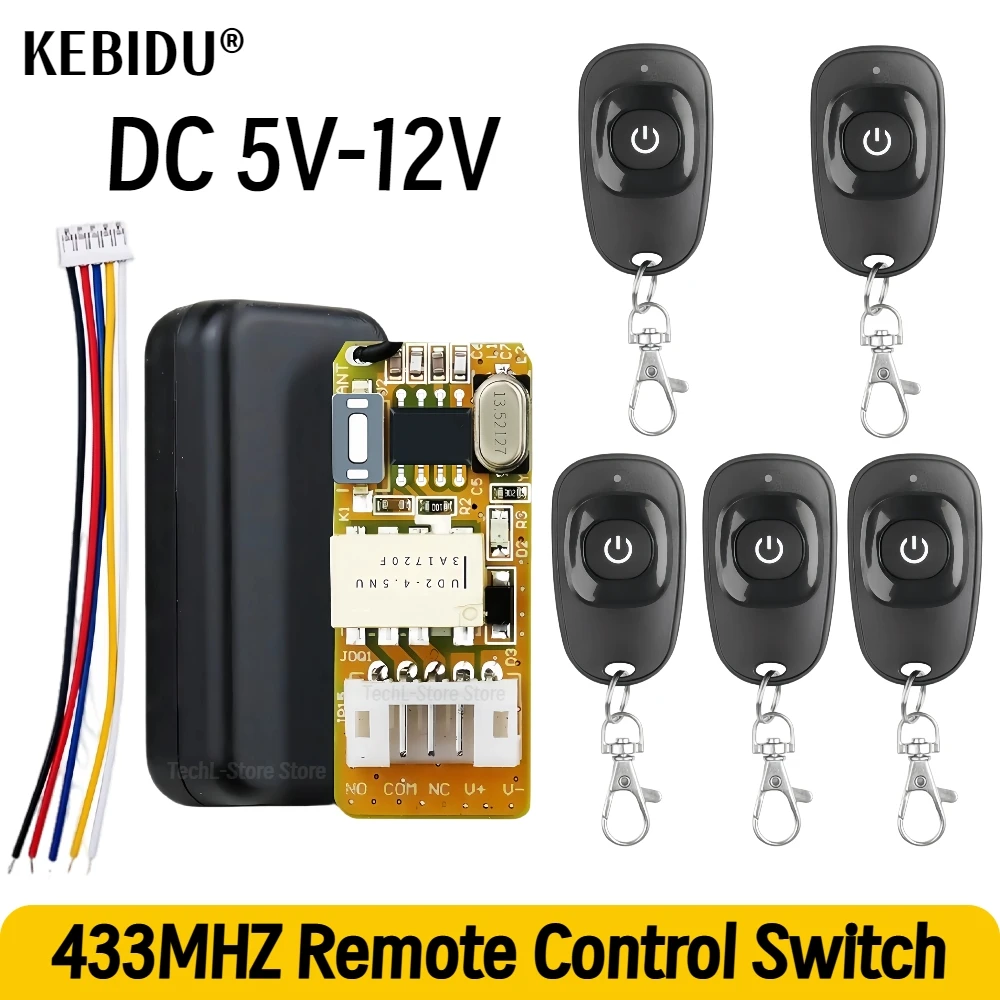

receiver:
Working voltage: 5-12V
Working frequency: 433Mhz
Size: 40*20*10.5mm
Operation Introduction:
Working Mode:
Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.
Clearing the Code:
Press the learning button on the module 8 times continuously, and the light flashes seven times and then goes out.
Learning the Code:(Momentary)
Press Module learning button 1 time, the indicator light is always on, then press the remote control button, the indicator light flashes 3 times and then turns off , then the learning is successful; If the code is not successful , the indicator lights out of the learning state after 15 seconds.
Learning the Code:(Toggle)
Press the Module Learning button 2 times, the indicator light always turns on; then press the remote control button, the indicator lights flicker three times and then off, then the learning is successful; if the code has not been successful, the indicator lamp goes out of the study state after 15 seconds.
Learning the Code:(Latching)
Press the Module Learning button 3 times, the indicator light always turns on; and then press the buttons on the remote control , the indicator lights flicker three times and then off,then the learning is successful; if the code has not been successful, the indicator lamp goes out of the study state after 15 seconds.
