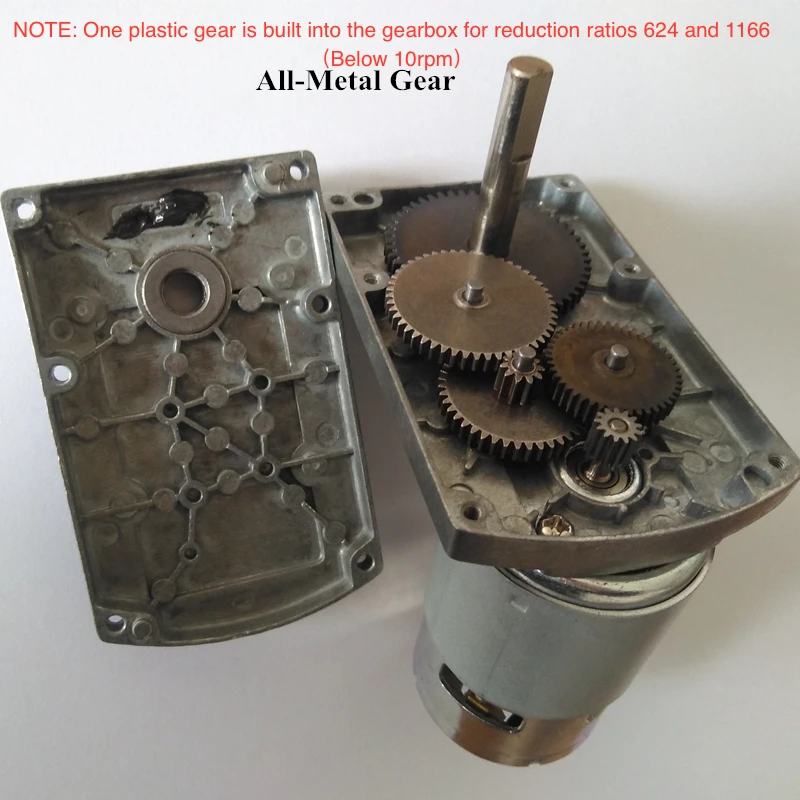

All-Metal Gear DC Motor
NOTE: One plastic gear is built into the gearbox for reduction ratios 624 and 1166
（Below 10rpm）
Model: TT-775
Input rated voltage: DC6V/12V/24V
Universal voltage range: DC: 3V–30V
Output shaft rotation: CW, CCW
Loadable torque: 20KGF.CM–80kgf.cm
Box output shaft diameter: 8mm, 9.5mm
Examples of main parameters:
Rated voltage: DC12V
Rated current: 1.2A
No-load speed: 48r/min
Reduction ratio: 94
Load speed: 36r/min
Output torque: 35kg.cm
weight:About 0.5kg
Conventional output shaft diameter: 8mm (cut edge 7mm)
No-load speed is optional:
6V:
2.5rpm 4.8rpm 7.6rpm 11.5rpm 14rpm 21rpm 30rpm 44rpm 68rpm 79rpm 88rpm 125rpm 160rpm
12V:
2.5rpm 4.8rpm 7.6rpm 11.5rpm 14rpm 21rpm 30rpm 44rpm 48rpm 68rpm 88rpm 125rpm 158rpm 162rpm 197rpm 300rpm 450rpm 600rpm 800rpm 1200rpm 1800rpm 3000rpm 4000rpm
24V:
2.5rpm 4.8rpm 7.6rpm 11.5rpm 14rpm 21rpm 30rpm 44rpm 48rpm 68rpm 88rpm 125rpm 158rpm 162rpm 197rpm 300rpm 450rpm 600rpm 800rpm 1200rpm 1800rpm 3000rpm 4000rpm
Features and uses of TT-775 DC geared motor:
1. The motor structure is simple, easy to start, easy to maintain, high speed, large torque, and long life;
2. Low energy consumption, high speed, high torque, good for engineering designers;
3. Products are widely used in monitoring systems, remote control curtains, automatic actuators, pump drives, ovens, stage lighting, electric valves, etc.
It is easy to realize the automation of industrial and mining products.
